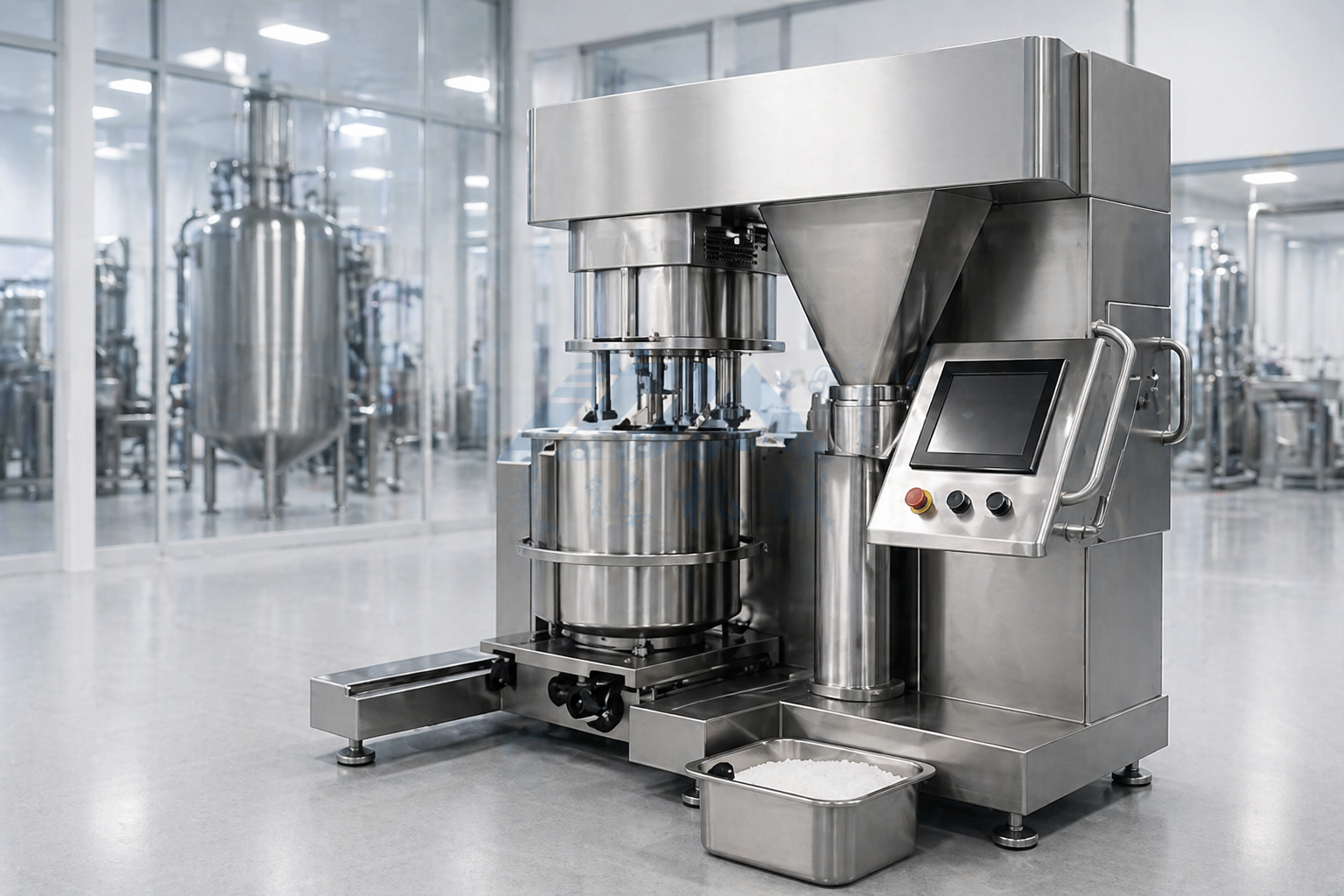

Configuring Planetary Mixer for Data-Driven Quality Assurance

In today’s regulated pharmaceutical landscape, quality assurance is no longer just about end-product testing—it is an in-process, data-driven mandate. As a result, traditional equipment like planetary mixers, long used for semi-solids and viscous formulations, must now evolve to support continuous monitoring, traceability, and intelligent control.

This article examines how modern planetary mixers are being reconfigured to meet the expectations of data-centric quality assurance, turning a workhorse tool into a digitally enabled asset within pharmaceutical manufacturing.

The Role of Planetary Mixers in Pharma

Planetary mixers are indispensable in the preparation of:

  • Ointments and creams
  • Semi-solid dosage forms
  • Wet granulation slurries
  • High-viscosity suspensions and gels

Their unique mixing action—where the agitator rotates on its own axis while orbiting the mixing bowl—ensures thorough, uniform blending of challenging materials. However, in their traditional form, these mixers offer limited process insight and virtually no integration with modern QA systems.

The Case for Data-Driven Configuration

Pharma manufacturers are now under pressure to:

  • Comply with 21 CFR Part 11 and Annex 11 for data integrity
  • Implement real-time quality monitoring (RTQM) strategies
  • Reduce product variability through process analytical technology (PAT)
  • Minimize rework and improve right-first-time manufacturing

A conventional planetary mixer—lacking sensors, feedback loops, or batch traceability—becomes a bottleneck in such a framework. To remain compliant and competitive, it must be configured not just for mixing performance, but for data visibility and control.

Core Elements of a Data-Driven Planetary Mixer

1. Integrated Sensor Packages for Real-Time Monitoring

Modern planetary mixers now include inline sensors that capture critical quality parameters such as:

  • Torque and power consumption (linked to viscosity and mixing consistency)
  • Temperature probes for thermal-sensitive actives
  • pH and conductivity sensors for aqueous or emulsion-based systems
  • Vacuum and pressure transducers where deaeration or solvent handling is involved

These inputs provide real-time insights into batch progression and help identify deviations before they become compliance issues.

2. Recipe-Based Automation with Electronic Batch Records

Data-driven quality assurance begins with process standardization. Configured planetary mixers now support:

  • PLC-based recipe management systems
  • Automated control of mixing speed, direction, and cycle time
  • Integrated alarms and tolerances for critical parameters
  • Audit trail generation and EBR compatibility

This ensures that each batch is mixed under repeatable, validated conditions, reducing human error and QA overhead.

3. Process Analytical Technology (PAT) Integration

For more advanced applications, planetary mixers can be paired with PAT tools to provide:

  • Near-infrared (NIR) monitoring of component distribution
  • Inline rheology sensors to track real-time viscosity profiles
  • Optical or ultrasound probes for emulsion homogeneity and phase separation

These enable continuous verification of blend uniformity and formulation integrity without interrupting the process—a critical need in high-value or sterile production scenarios.

4. Data Connectivity to Manufacturing Systems

To be useful in a quality assurance framework, mixer data must flow seamlessly into broader manufacturing systems. Forward-looking configurations offer:

  • OPC UA or Modbus connectivity to SCADA and MES platforms
  • Real-time dashboards for production and QA teams
  • Cloud-based analytics and batch history logs

This supports end-to-end traceability, faster root cause analysis, and digital release readiness.

5. Qualification and Validation Support

All data-driven configurations must still comply with regulatory expectations around equipment qualification. Vendors now provide:

  • IQ/OQ protocols aligned with FDA and EU GMP guidelines
  • Software validation documentation (Part 11-ready)
  • Sensor calibration certificates and traceable logs

This ensures that digital capabilities do not compromise cGMP compliance, but rather enhance it.

Strategic Benefits for Pharma Manufacturers

Configuring planetary mixers for data-driven assurance offers a number of strategic gains:

  • Improved batch consistency, especially for viscous or sensitive formulations
  • Early deviation detection, reducing QA intervention later in the process
  • Streamlined validation cycles, thanks to documented process adherence
  • Faster product release, enabled by real-time quality tracking
  • Increased operator accountability, supported by system-generated audit trails

It also helps build a foundation for predictive quality—using historical mixer data to anticipate and prevent quality risks in future production runs.

A Mindset Shift: From Mixing to Quality Asset

The evolution of the planetary mixer mirrors a broader shift in pharma manufacturing—from analog tools to intelligent systems. It’s no longer enough for a mixer to blend materials. It must generate actionable data, enable traceable decisions, and fit into a validated digital ecosystem.For manufacturers investing in Pharma 4.0 readiness or lean digital transformation, the planetary mixer—once seen as a simple processing tool—can now serve as a critical node of data-driven quality assurance.
